Designed to create smarter living space.

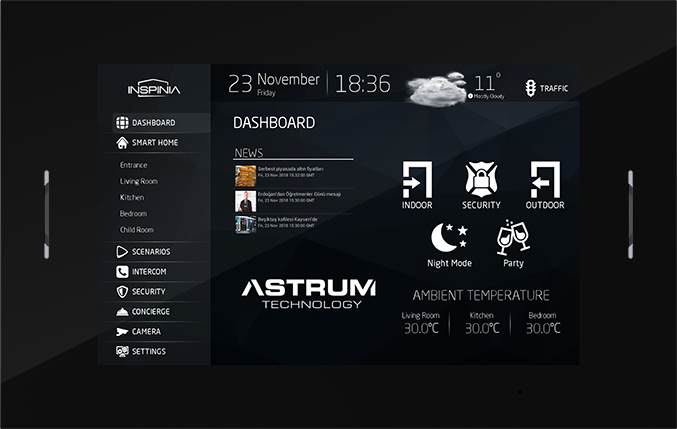

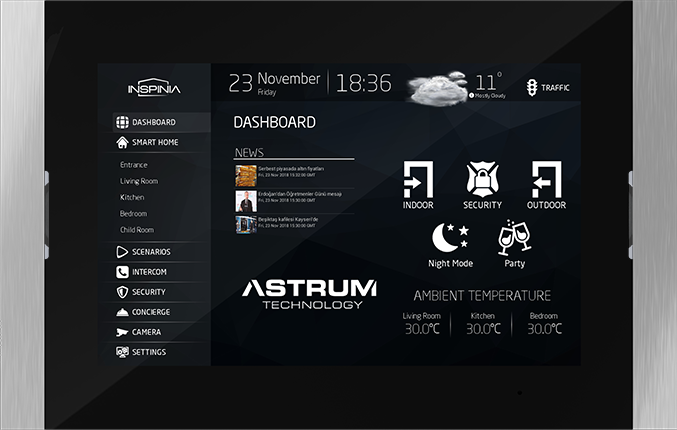

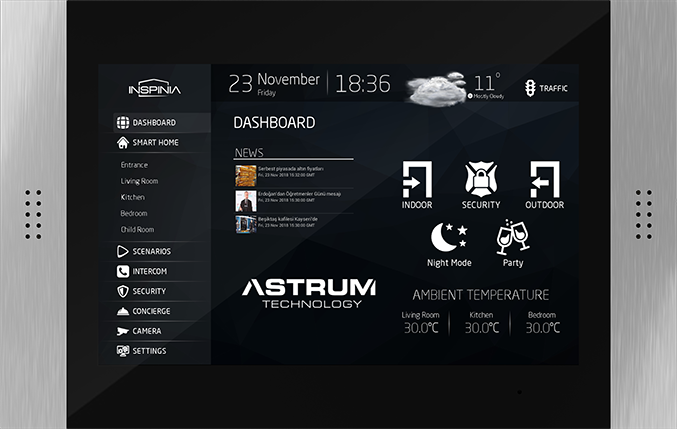

New Inspinia was carefully designed for a smooth user experience to bring you a real home control experience. Inspinia is a combination of industrial standard technology, smart software, electronic engineering with precisely manufactured materials. Inspinia comes with 3 different outlook Grand, Slim and Vitre.

Features

  • Combination of glass and stainless steel
  • HD 7" or 10.1“ IPS widescreen display
  • Smooth touch interface

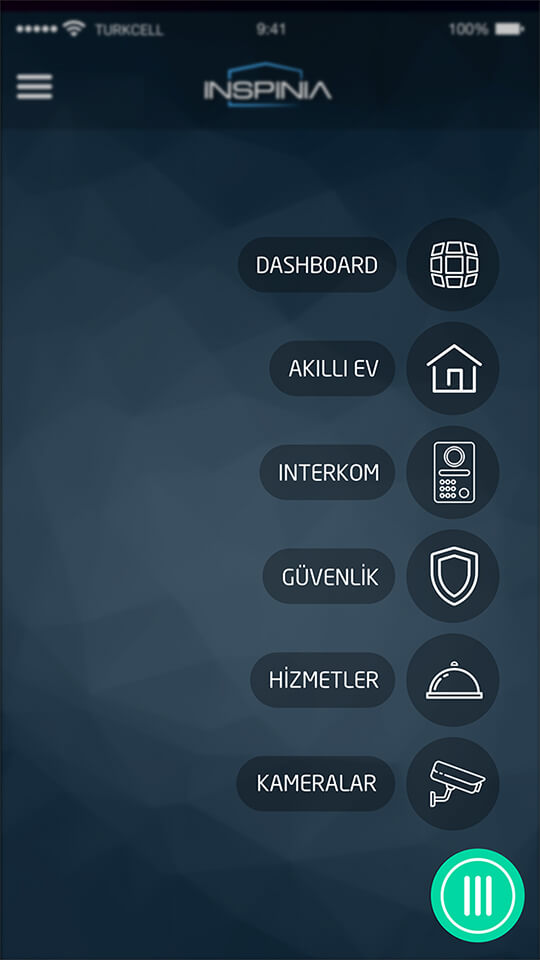

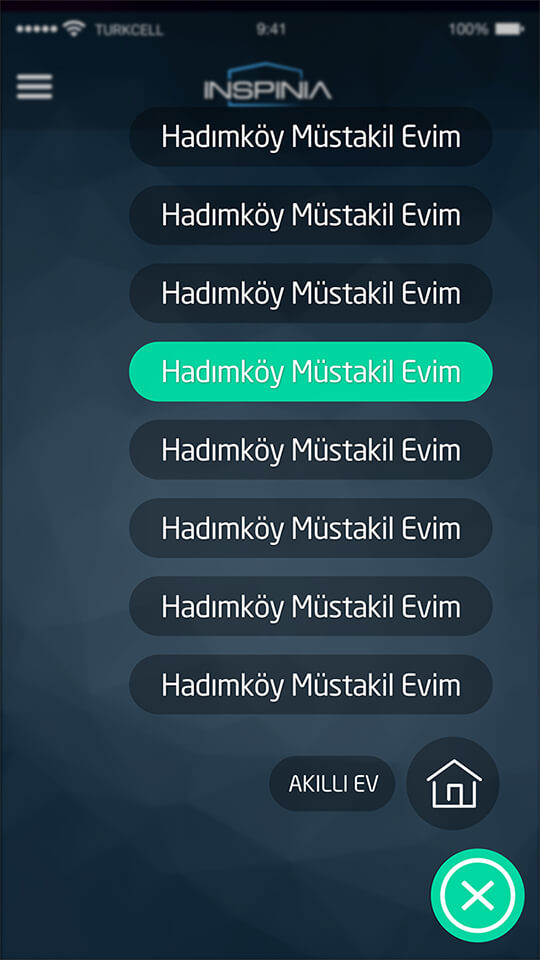

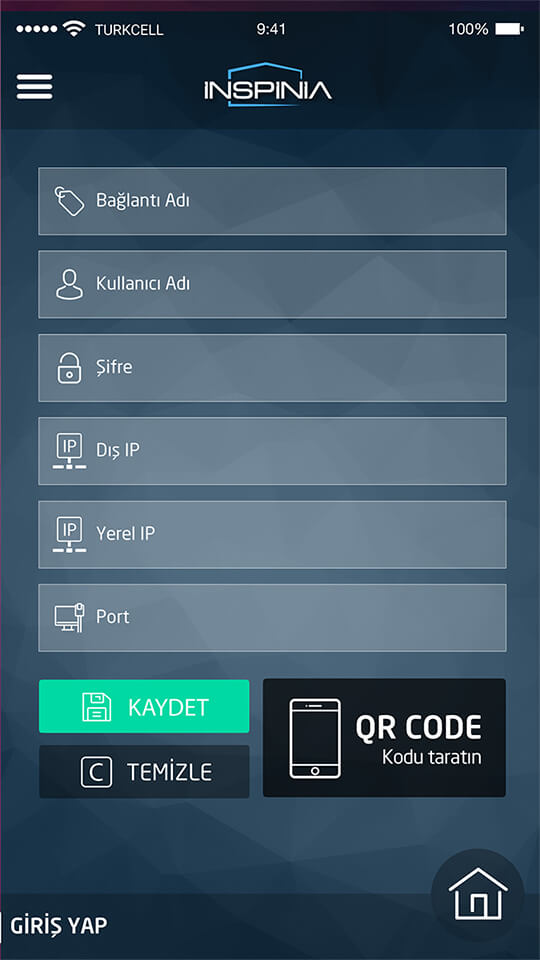

  • Built-in web server and mobile app
  • Home automation connectivity via KNX or OpenWebNet

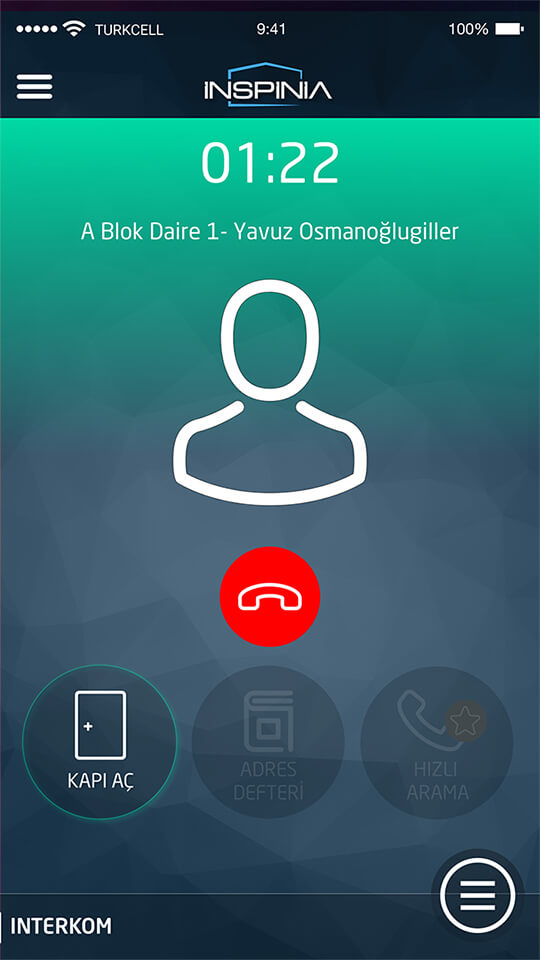

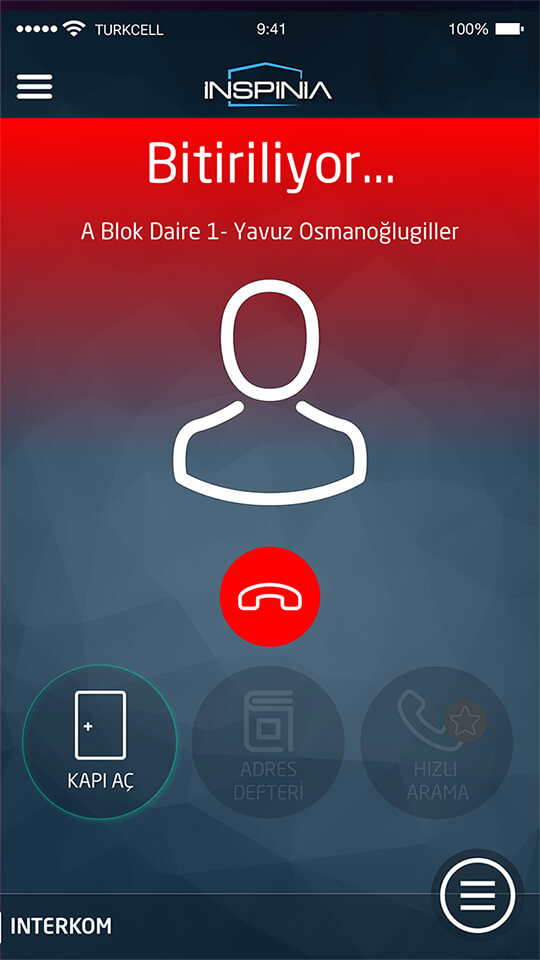

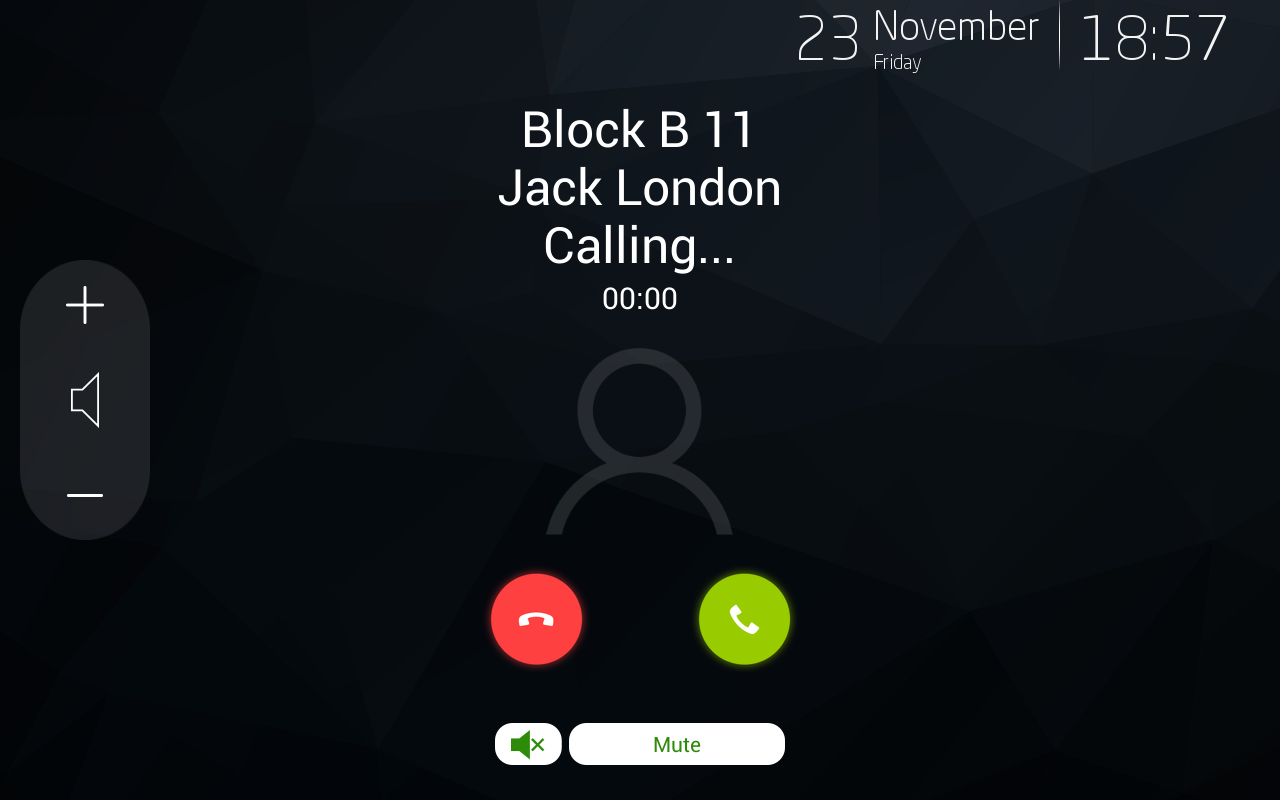

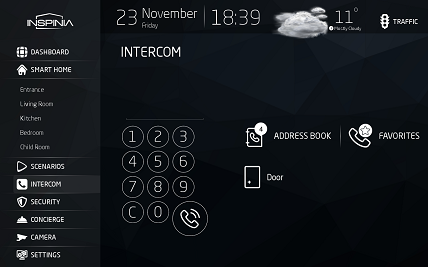

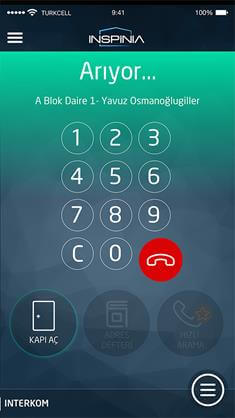

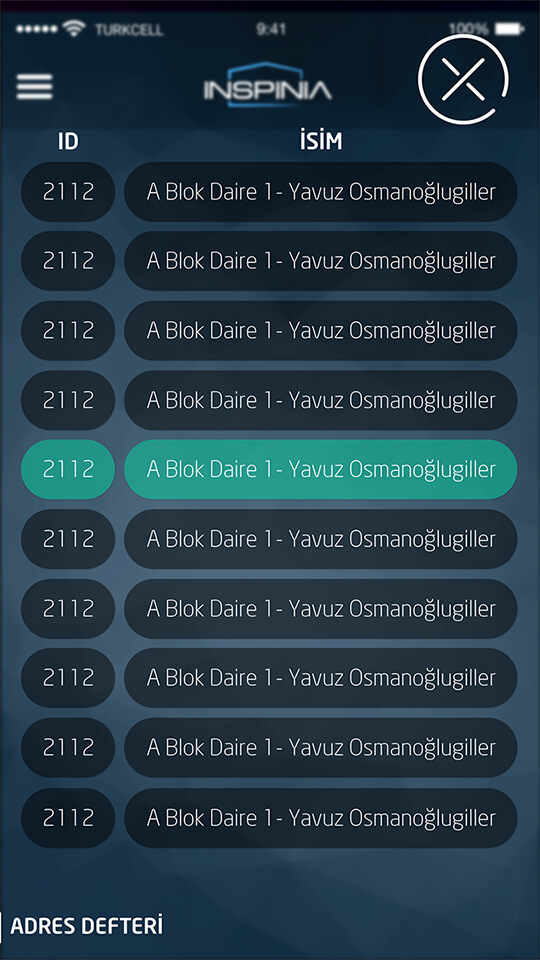

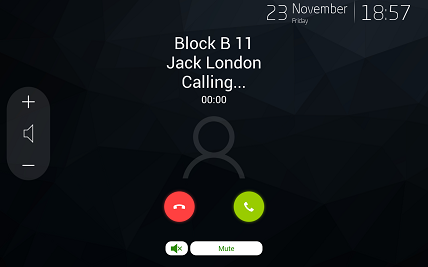

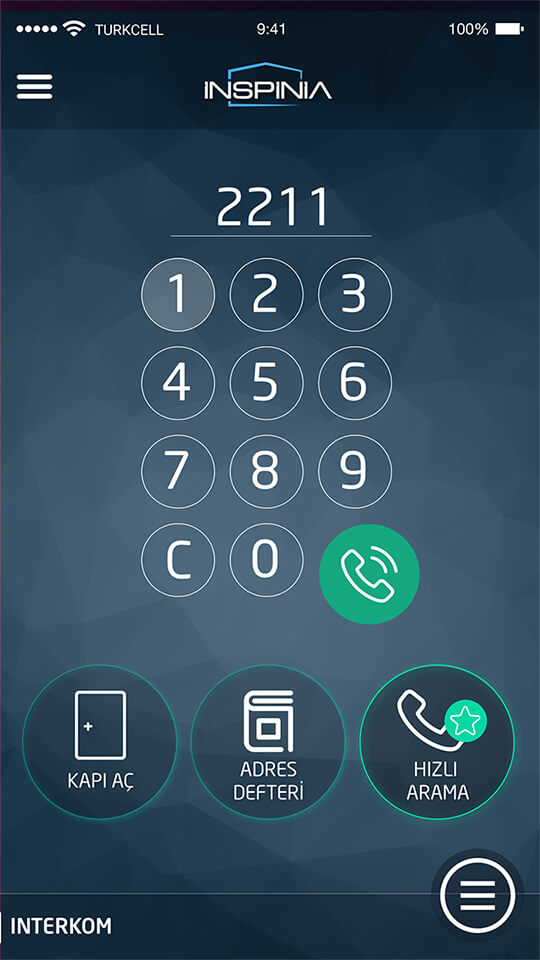

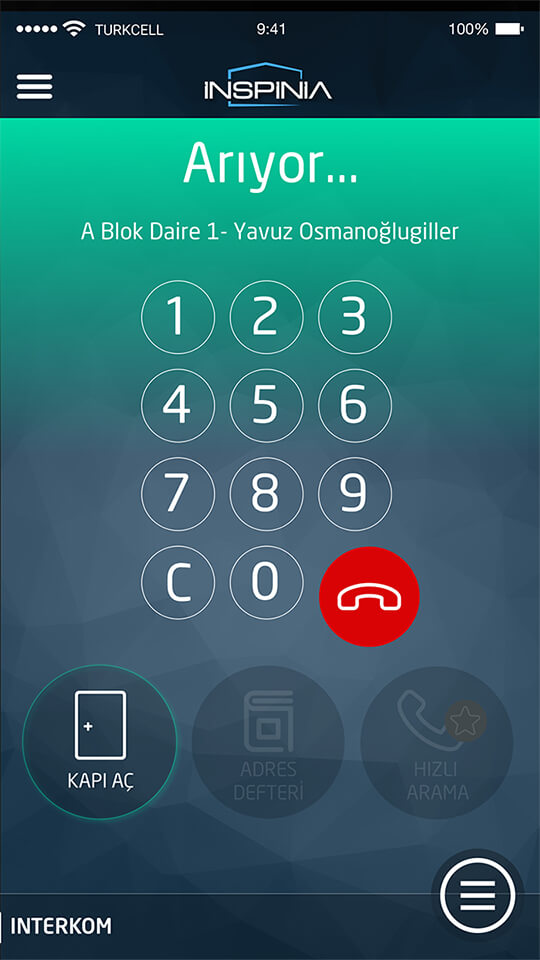

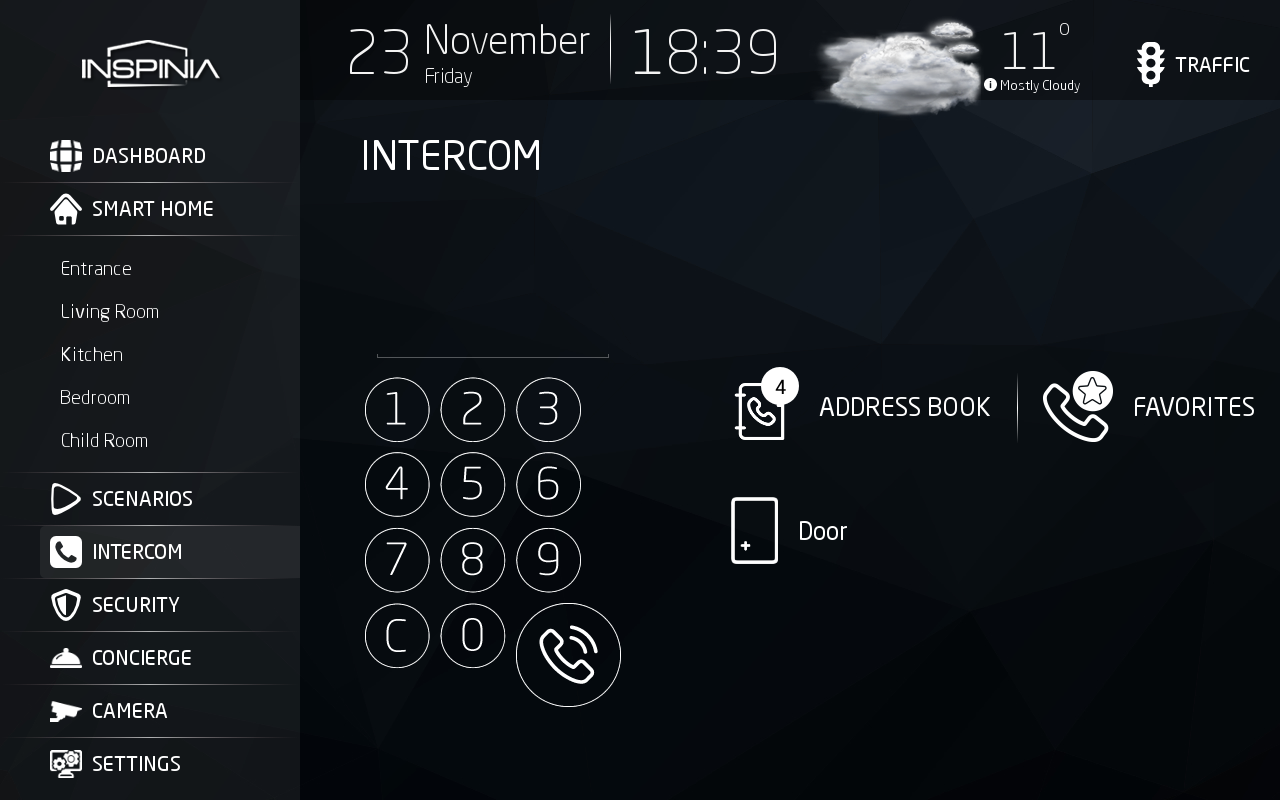

  • Intercom function via VOIP
  • Powerful hardware and connectivity
  • Based on Android OS


DEVICE SURVEY

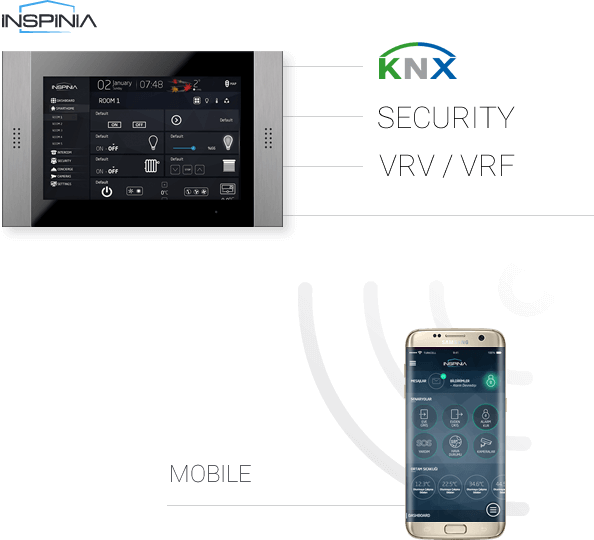

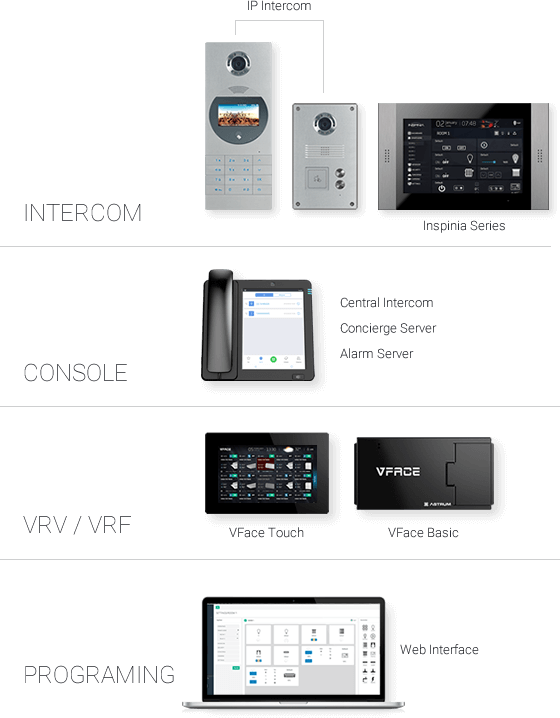

Functions & Overview

ROUTER

Technical Specifications

  • Power Supply : 12 VDC
    Display Options : TN 7″ with capacitive touchscreen
    IPS 10″ with capacitive touchscreen
    Hardware : ARM A7 Dual-Core 1.2 GHz, GPU Mali400MP2
    2 GB DDR3 Ram / 8 GB Nand flash
    Wifi + Bluetooh two-in-one module (optional)
    Standard Interfaces : LAN RJ45 (1x) GbE interface
    USB 2.0 (1x)
    Digital Output (2x) 24VDC 2A Relay
    Digital Input (5x) 12VDC IN
    Optional Interfaces : KNX (1x) TP
    SCS (1x) TP
    RS232 / RS485 (1x) two-in-one module
    Galvanic isolated modbus (1x)
    VRF communication port (1x) (check supported brands)
    Multimedia : Speaker (2x) 0,5 watt and microphone with noise cancellation
    Housing Type : Aluminium colored black
    Protection grade IP 20
    Working Humidity : 5% – 90% at 25°C
    Working Temperature : -10°C – +35°C
  • Standard Technologies : Built-in web server
    Internet upgradable
    Customizable UI and web interface
    VoIP (check supported brands)
    Connectivity : KNX
    SCS
    Modbus RTU RS232 / RS485 (soon)
    Web server implementation (via SDK) (soon)

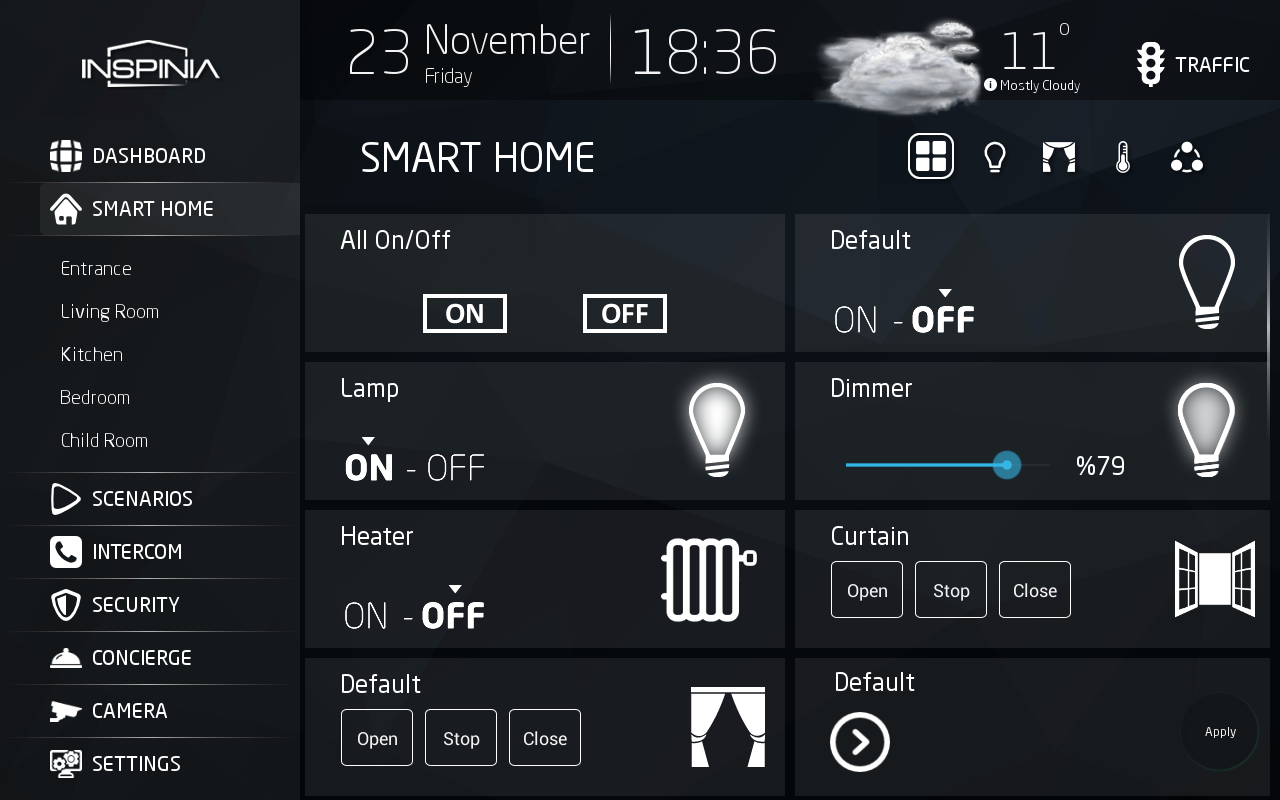

    Controllable Elements : Illumination
    Heating / Cooling
    Air conditioninig (thermostat and vrf)
    Curtain and jalousie

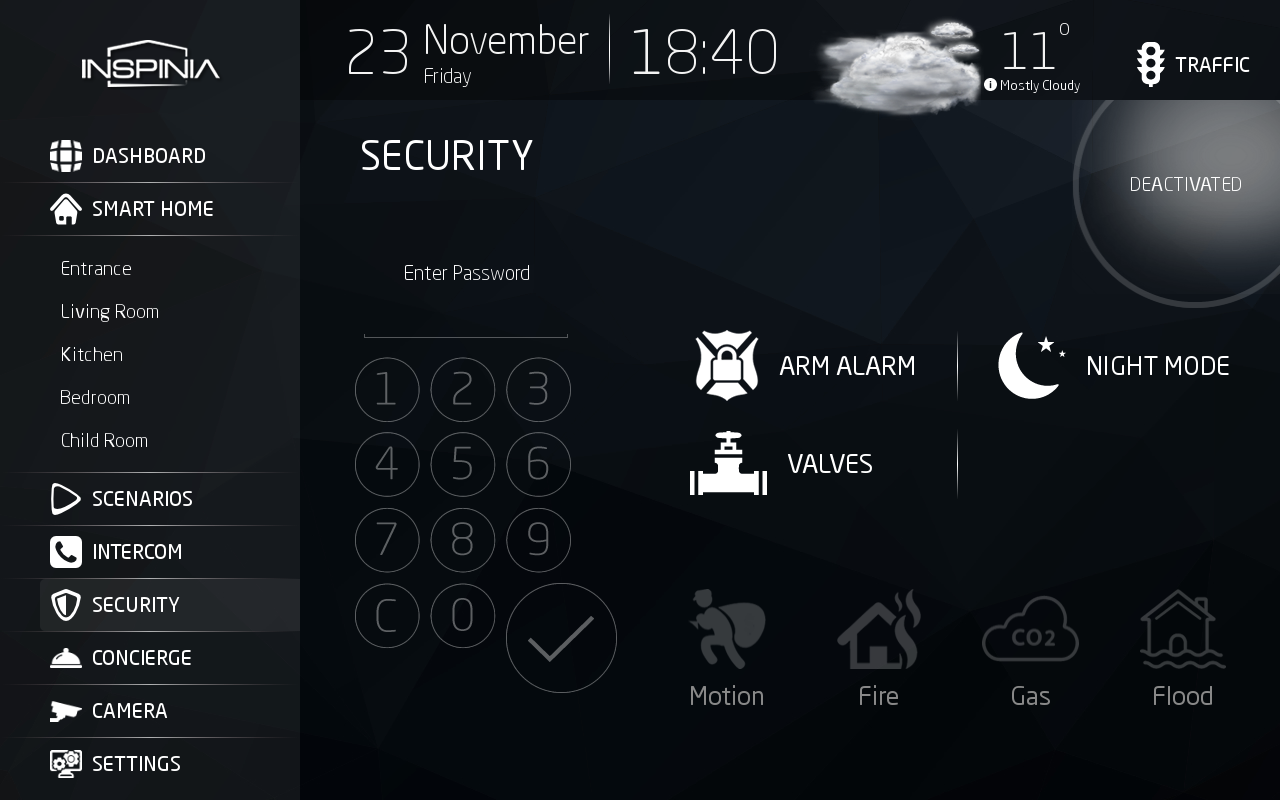

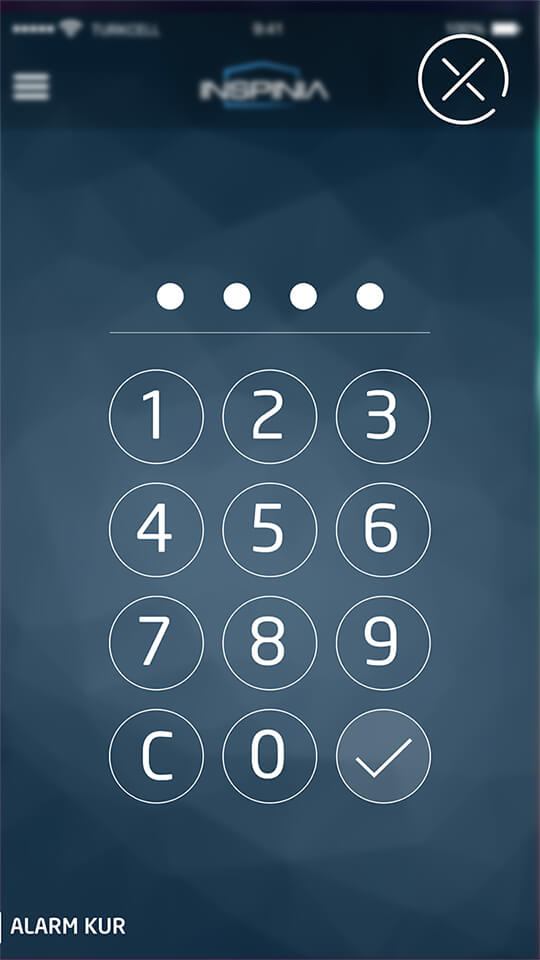

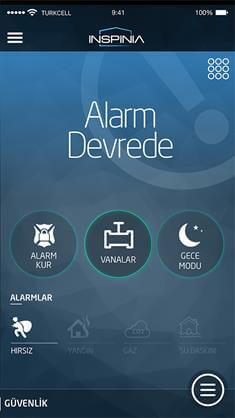

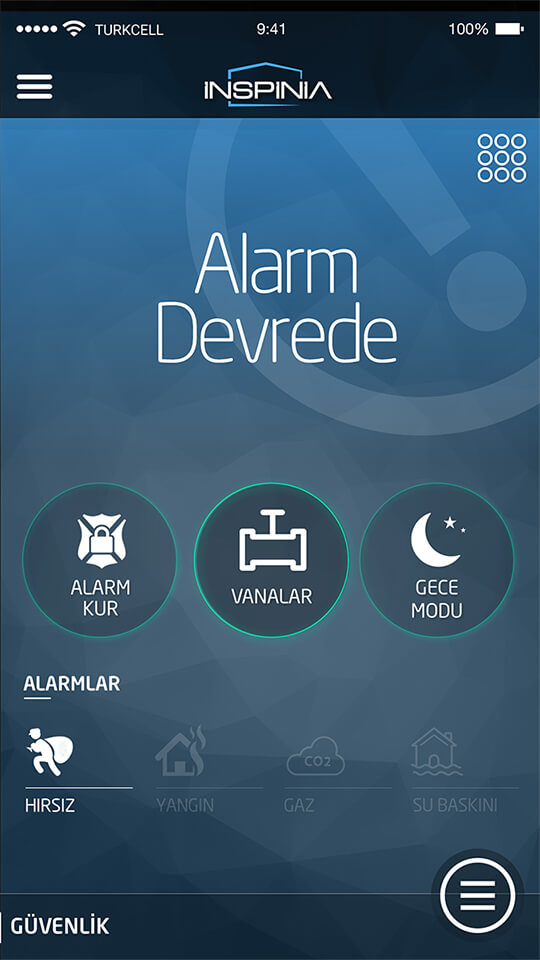

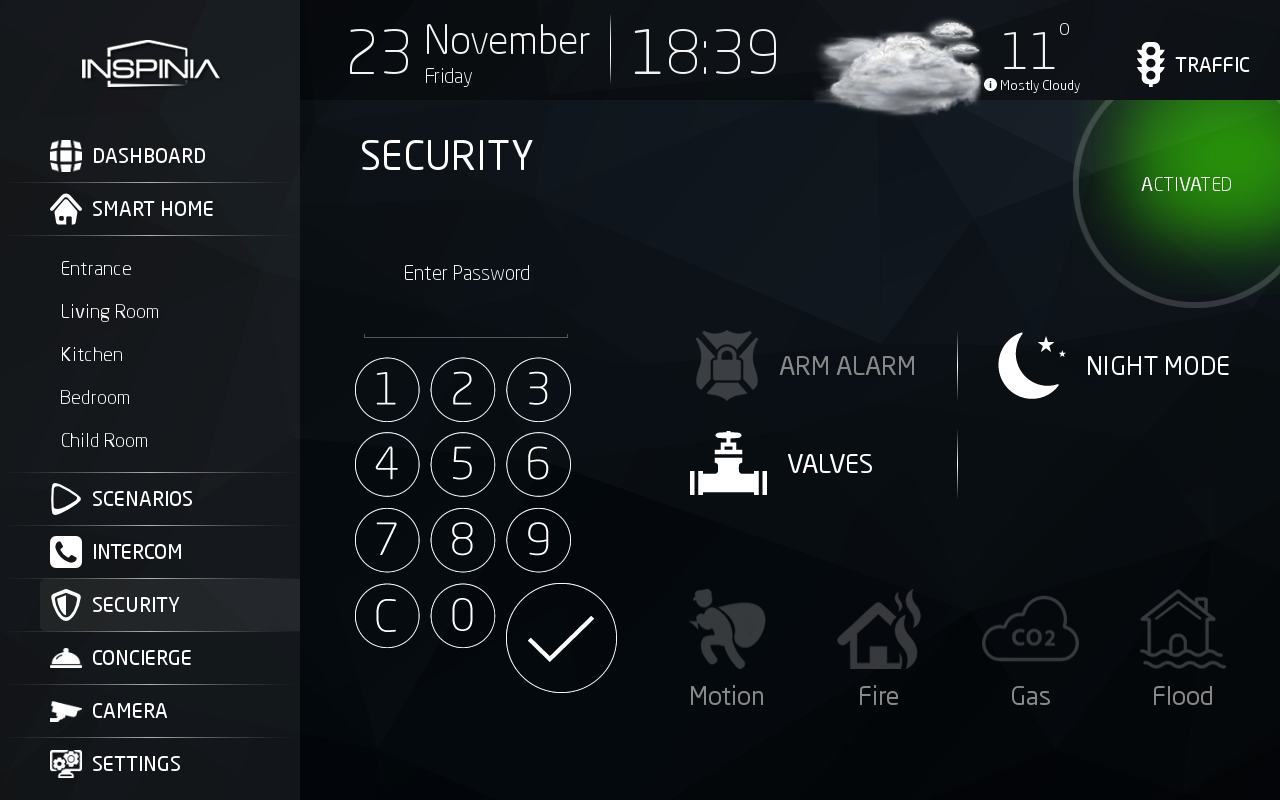

    Security objects

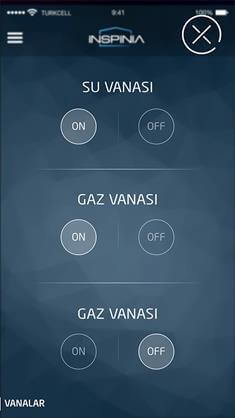

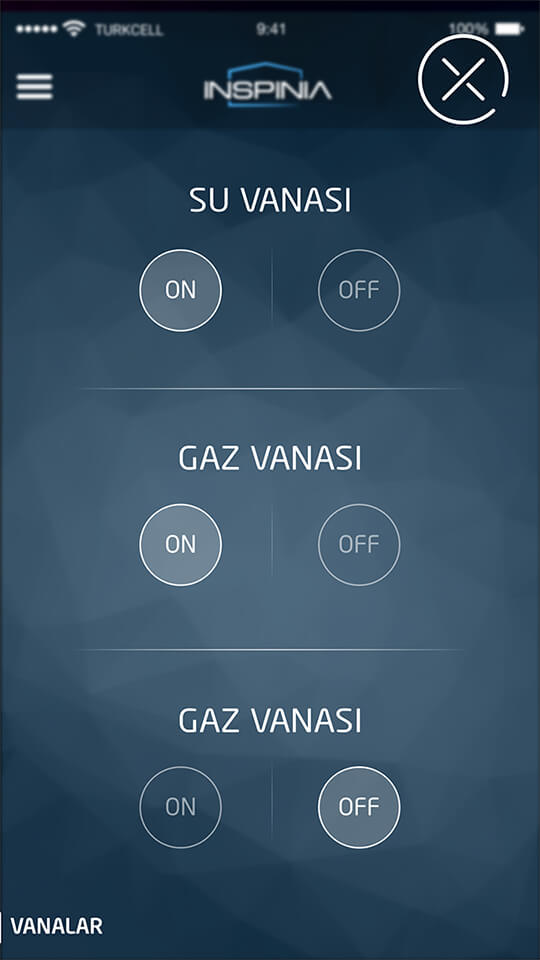

    Valves

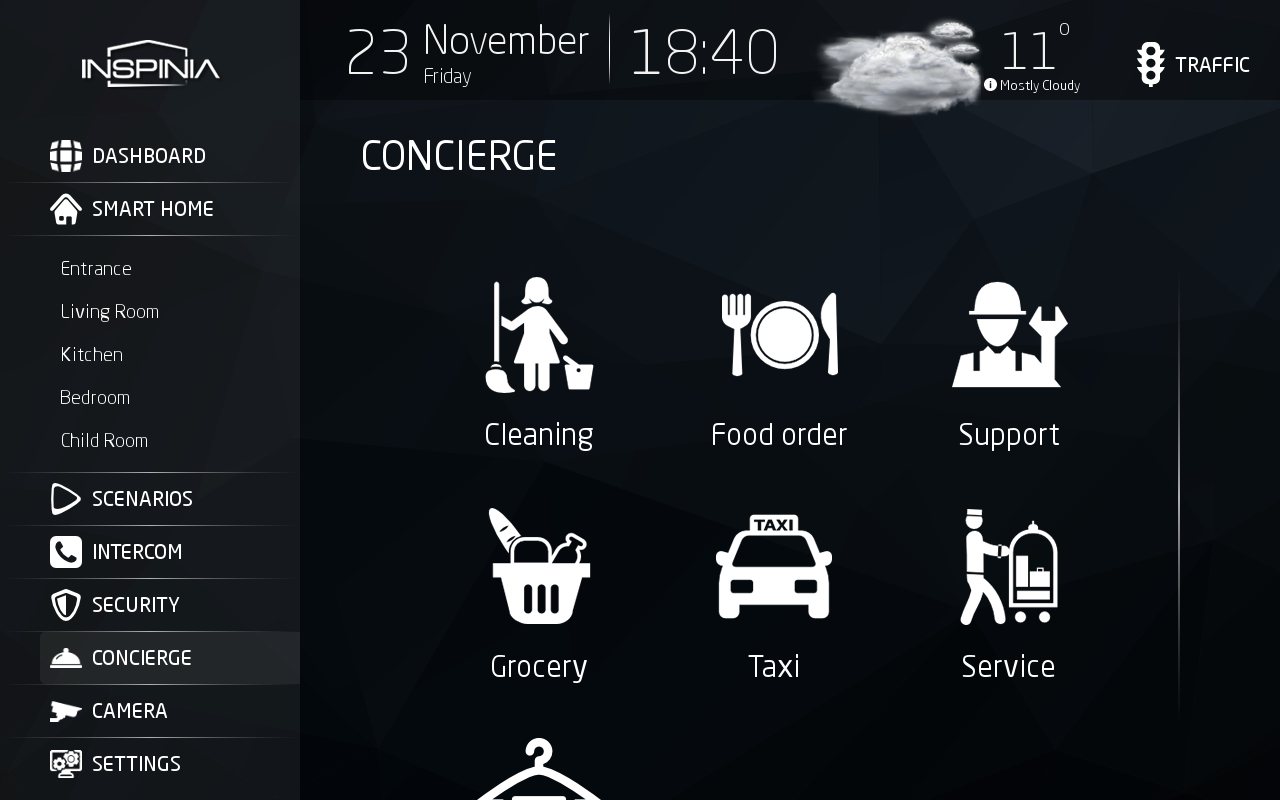

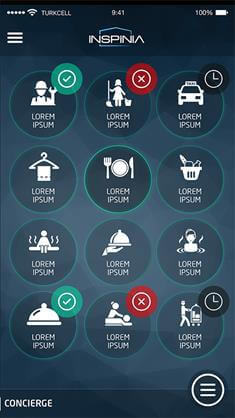

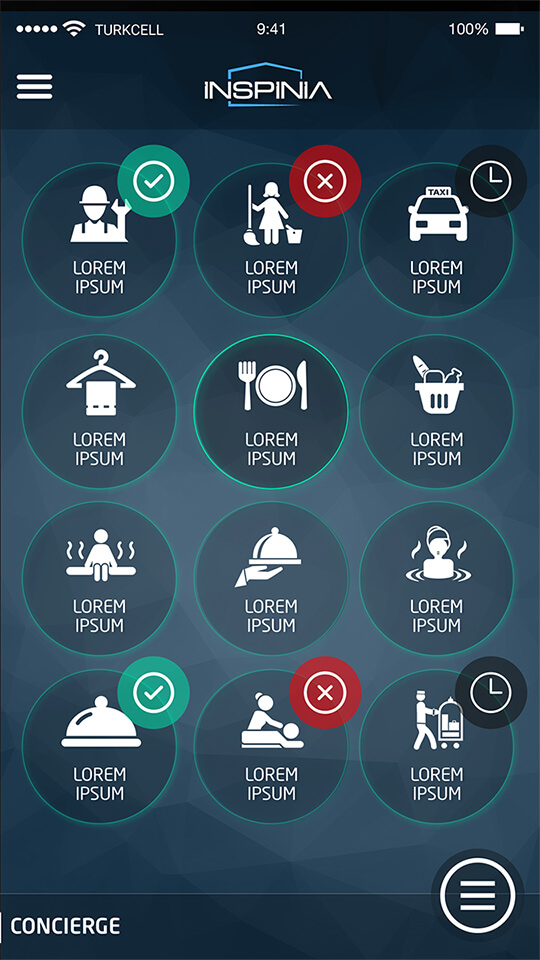

    Concierge (with Smart Console)

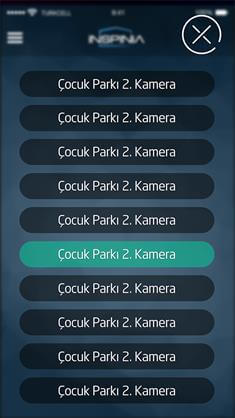

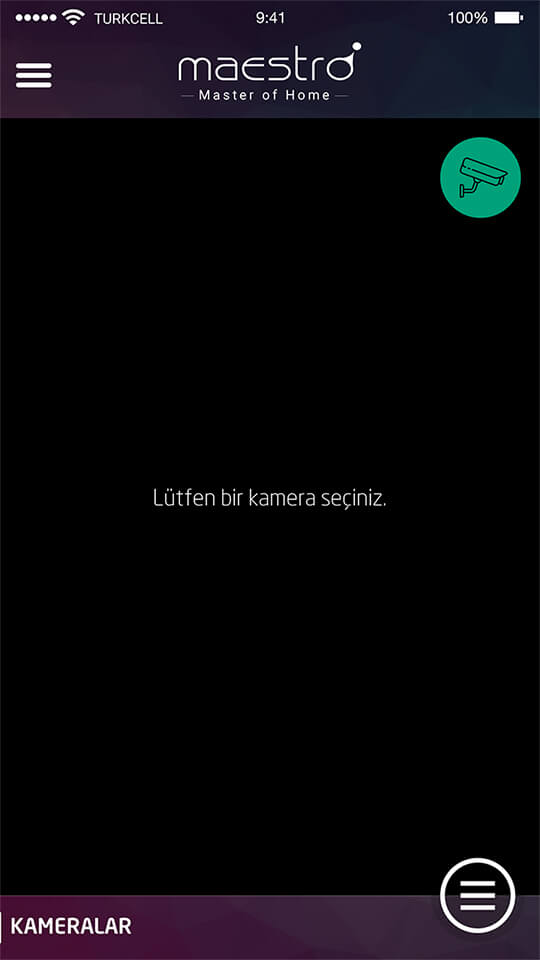

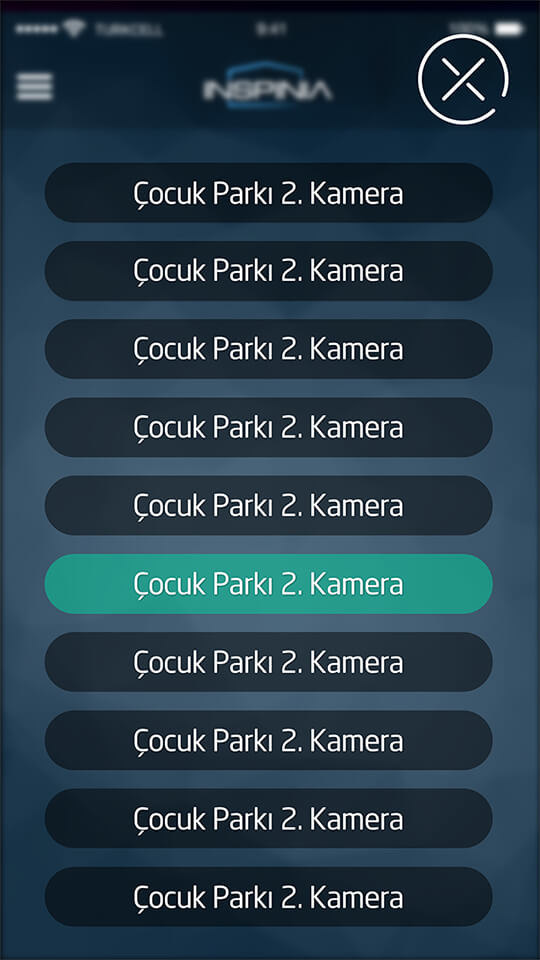

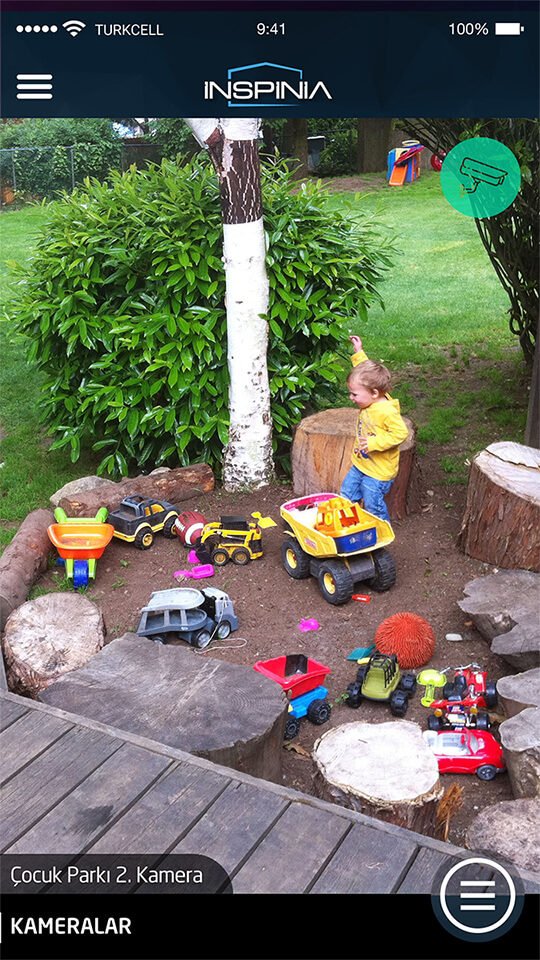

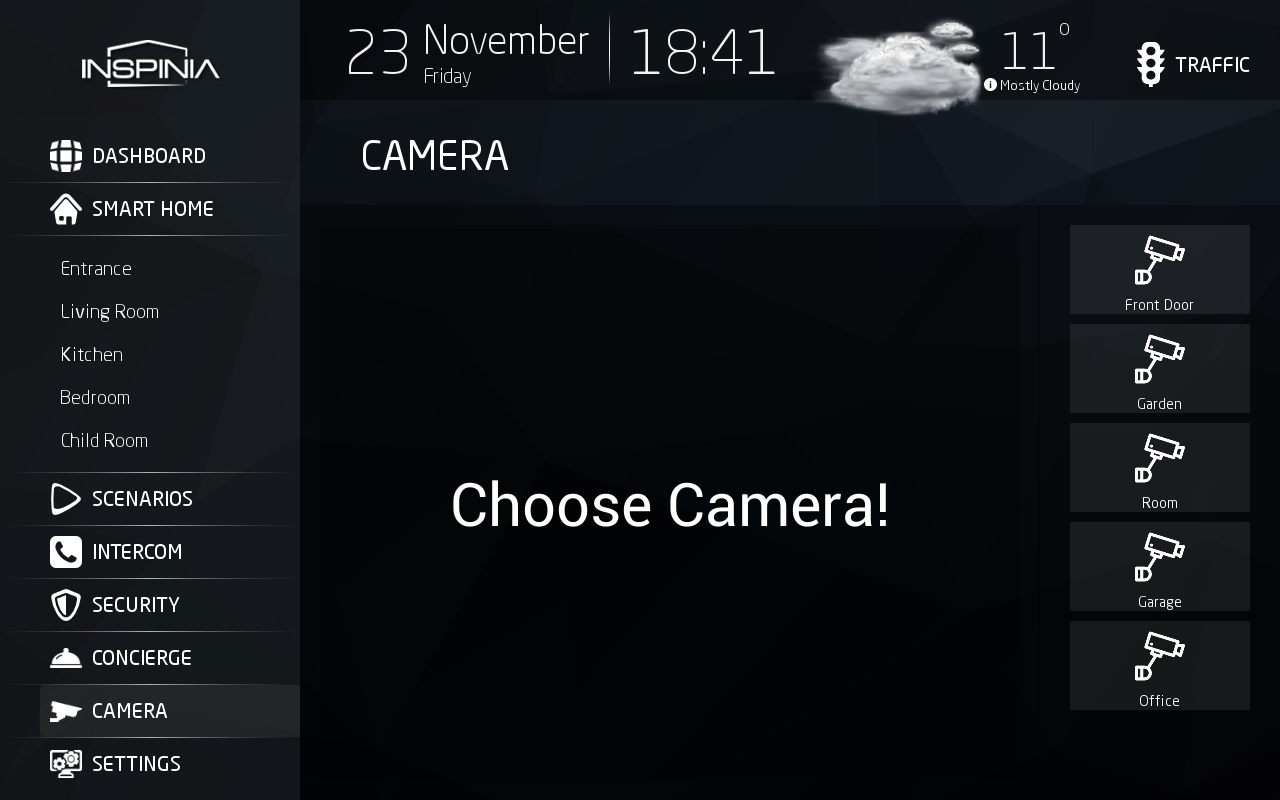

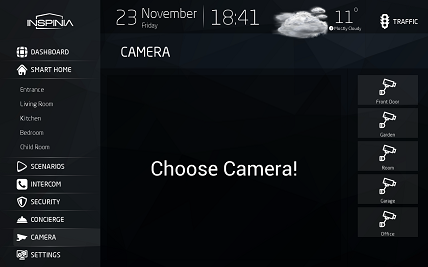

    IP cameras (H.264) with Onvif protocol
    VOIP Intercom (only authorized brands)
    User Interface : Web/Html5 (All operating systems)

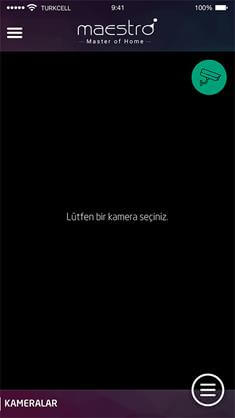

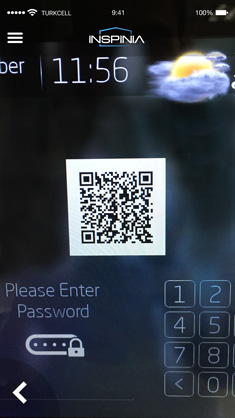

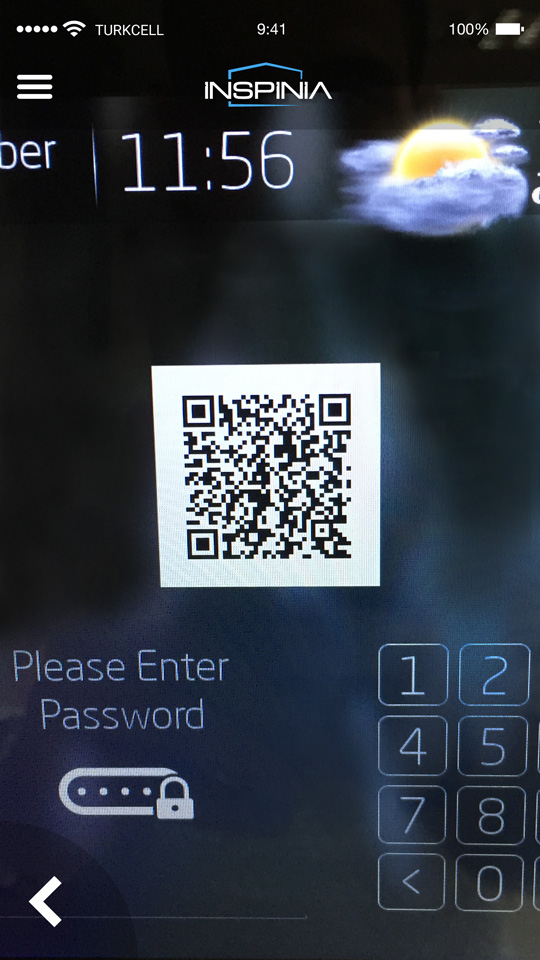

    App support (iOS / Android)
    Unlimited clients (up to 16 parallel connections)
    Browser Compatibility : Chrome / Firefox / Safari
    Operating System : Android 4.2.2 (customized)

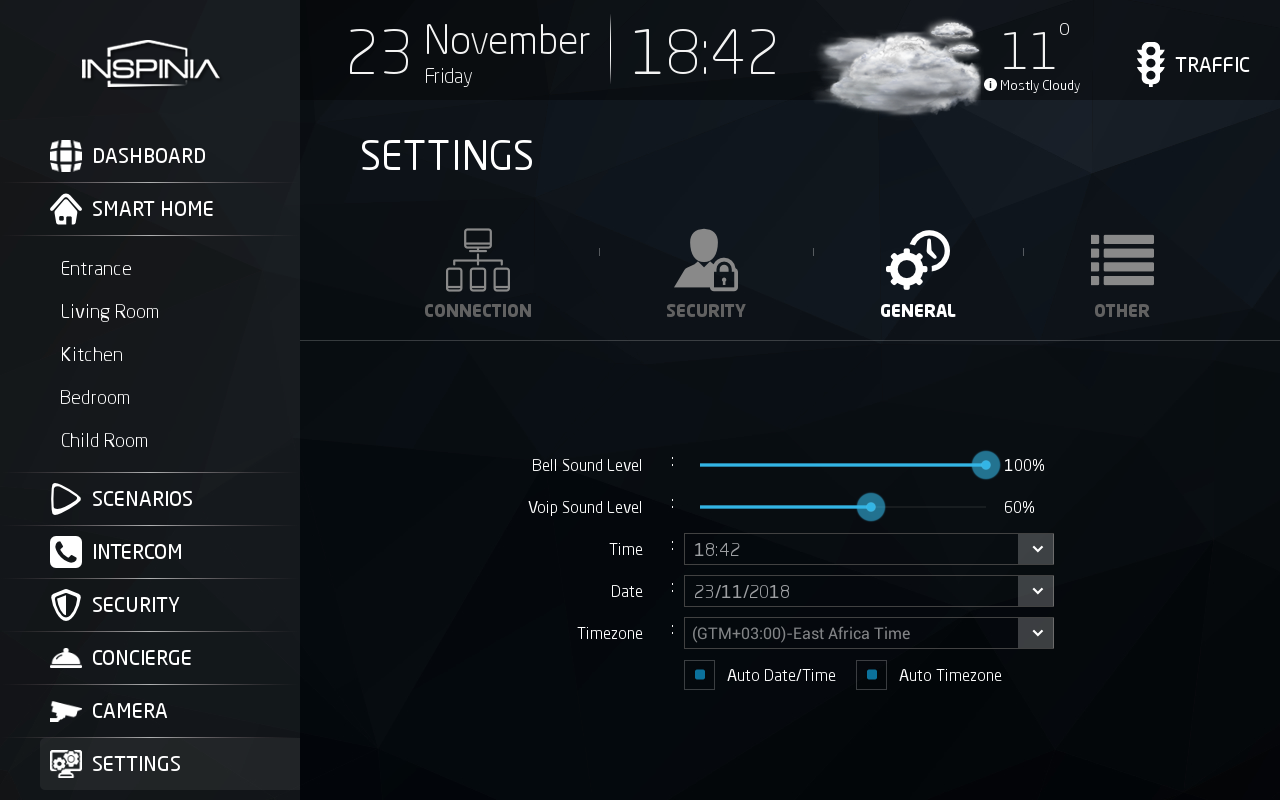

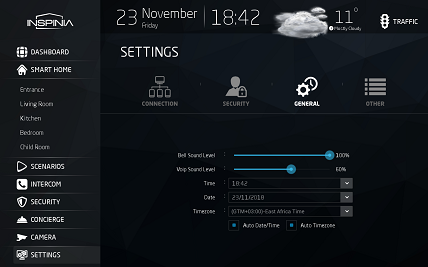

  • Configuration Interface : Online / offline through web interface
    Backup / restore of the project
    Select connectivity

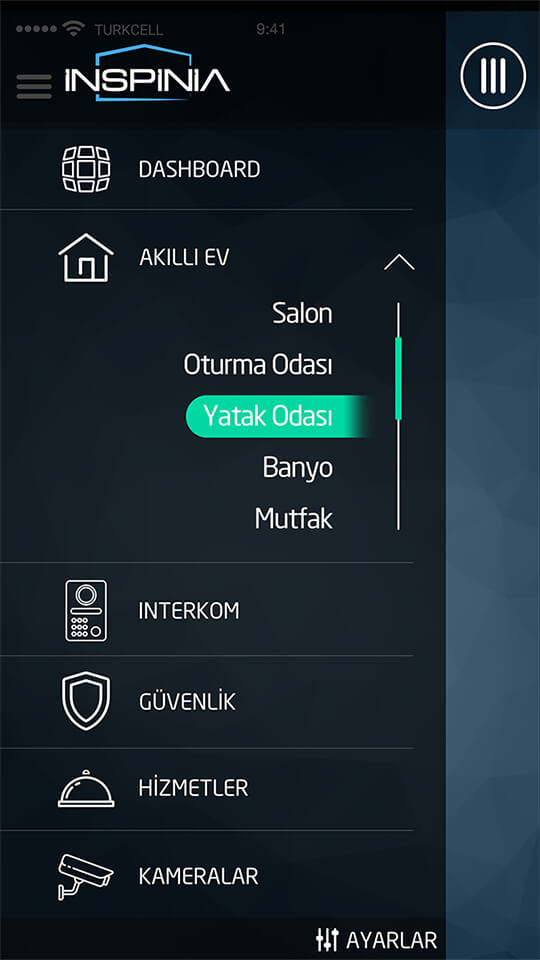

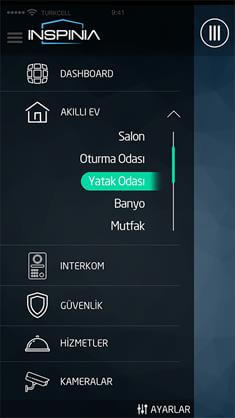

    Navigation menu with access to all functions
    Drag & Drop all controlable elements

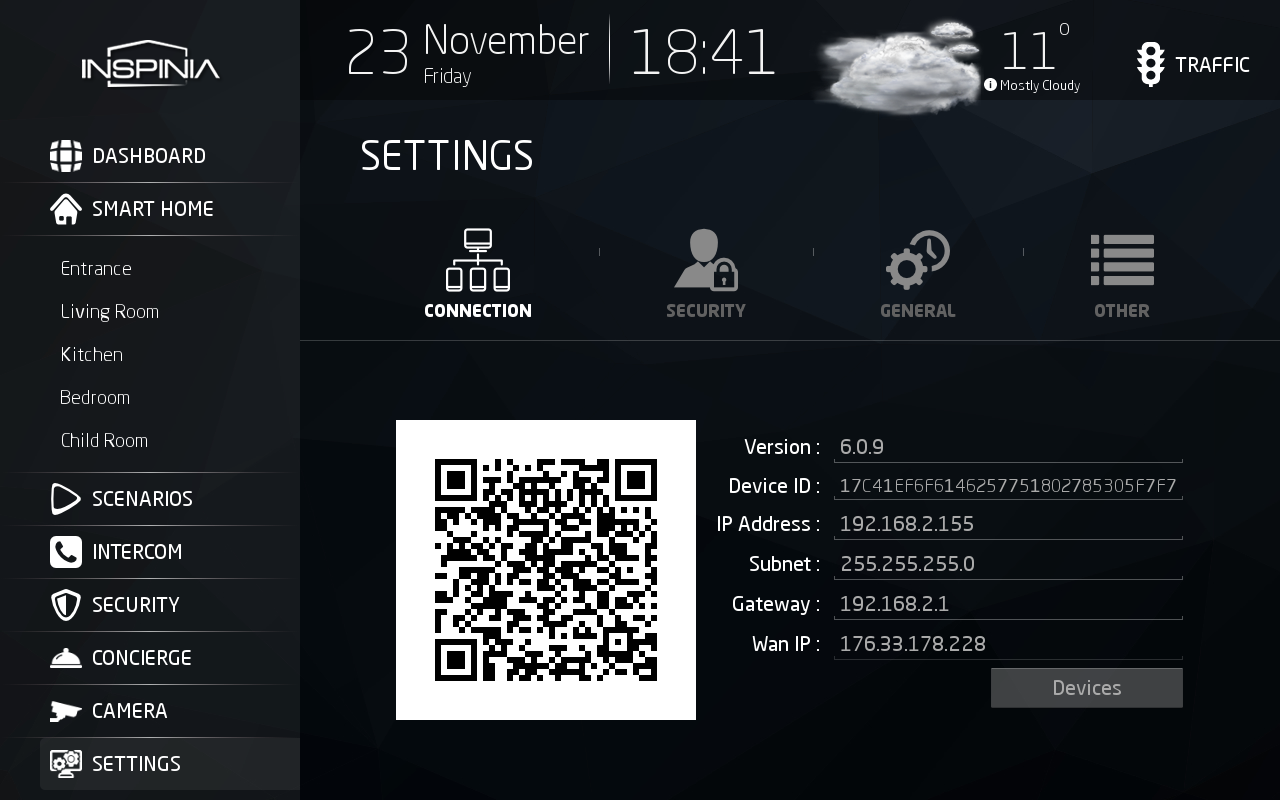

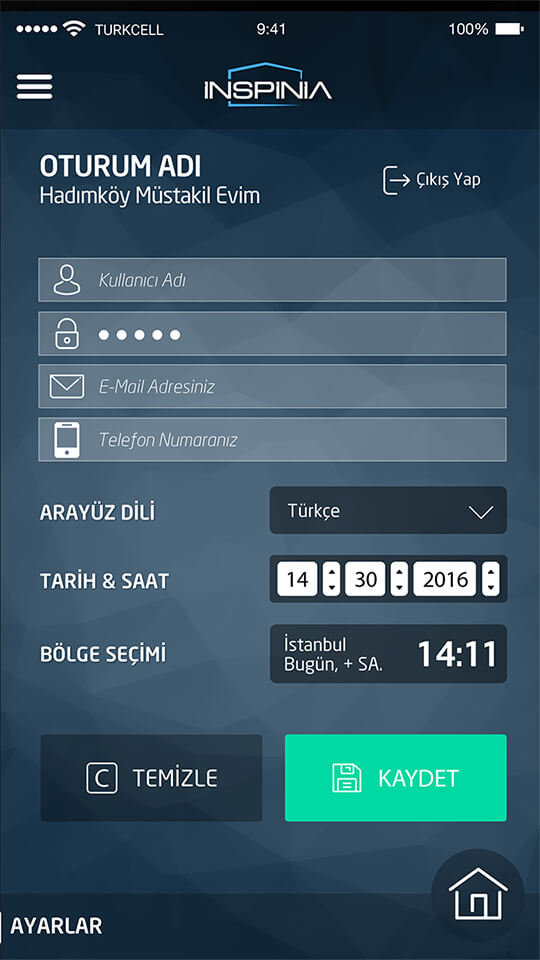

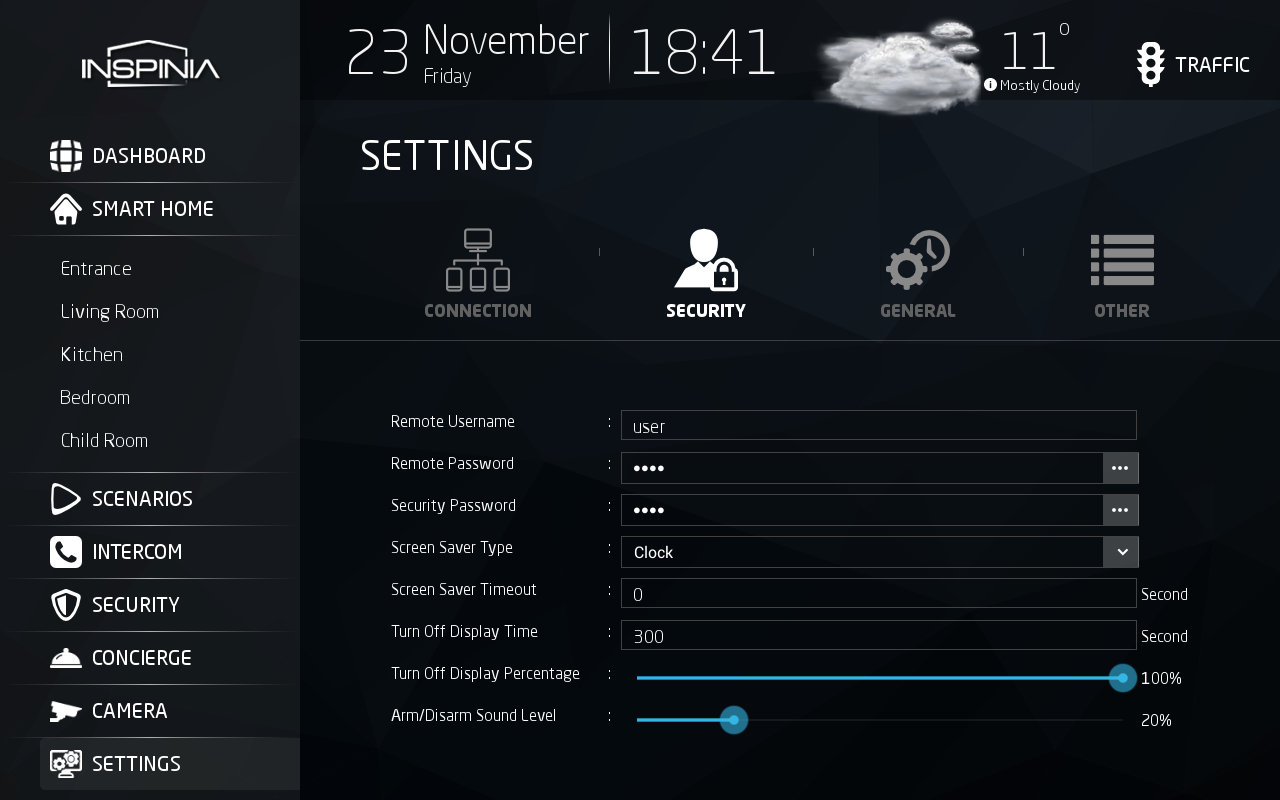

    Setup and Maintenance : Network
    Date / time
    Language support (soon)
    Selection of graphical elements
    Software update
    Software license
    Rooms / Pages : Unlimited pages and rooms
    Layout in grid and background view
    Background customizable
    Positioning of the functions
